Arrangement

Creating an ArrangementArea Object with a Rectangular Contour


This macro shows you how to create an ArrangementArea object with a rectangular contour in a product document.

This macro opens a new product document and retrieves the ArrangementItemAreas collection from the root Product via the ArrangementProduct object. It then adds an ArrangementArea object. The Arrangement object so created does not have a contour. To add a contour, the ArrangementRectangles collection oject is then retrieved from the newly created ArrangementArea and a new ArrangementRectangle object is created and then added to the ArrangementArea as a rectangular contour.



CAAArrCreateContourArea is launched in CATIA [1]. No open document is needed.

CAAArrCreateContourArea.CATScript is located in the CAAScdArrUseCases module. Execute macro (Windows only).



CAAArrCreateItemReservation includes the following steps:

  1. Prolog
  2. Obtaining the ArrangementProduct Object and the Associated Movable Object from the Root Product
  3. Creating the ArrangementArea Object under the ArrangementAreas Collection Object
  4. Creating the ArrangementRectangle Object
  5. Adding a Rectangular Contour to the ArrangementArea Object
  6. Epilog

Prolog

  ...
   '----------------------------------------------
   'Create a new product document
   Dim objProdDoc        As ProductDocument
   Dim objRootProd       As Product
   Set objProdDoc      = CATIA.Documents.Add("Product")
   Set objRootProd     = objProdDoc.Product
   ...

Once the new product document has been created, fetch the ArrangementProduct and the associated movable object from the root product of the new product document.

Obtaining the ArrangementProduct Object and the Associated Movable Object from the Root Product

...
   '----------------------------------------------
   'Retrieving Root Product's Relative Axis and Position Information
   Dim objMove           As Move
   Dim objPosition       As Position
   Set objMove      = objRootProd.Move
   Set objPosition  = objRootProd.Position

   '----------------------------------------------
   ' Get ArrangementProduct
   Dim objArrProd        As ArrangementProduct
   Set objArrProd   = objRootProd.GetTechnologicalObject("ArrangementProduct")
...

The ArrangementAreas object is a collection object that manages ArrangementArea object's under a given ArrangementProduct. The movable object serves as the relative axis for the new ArrangementArea object to be created.

Creating the ArrangementArea Object under the ArrangementAreas Collection Object

...
   '----------------------------------------------
   ' Create Area without a contour under the Root Product
   Dim objArea     As ArrangementArea
   Dim dblAreaPos(11)  As Double

   objPosition.GetComponents dblAreaPos
   Set objArea     = objArrProd.ArrangementAreas.AddArea(objMove, dblAreaPos, 50.0)
...

The newly created ArrangementArea object is displayed without a contour at this point.

Creating the ArrangementRectangle Object

...
   '----------------------------------------------
   ' Create Rectangle
   Dim objRectangle      As ArrangementRectangle
   Dim objArrProd1       As ArrangementProduct
   Dim objAreaProd1      As Product
   Dim objMove1          As Move
   Dim objPosition1      As Position
   Dim dblRectPos(11)    As Double

   Set objAreaProd1  = objArea.GetTechnologicalObject("Product")
   Set objArrProd1   = objArea.GetTechnologicalObject("ArrangementProduct")
   Set objMove1      = objAreaProd1.Move
   Set objPosition1  = objAreaProd1.Position

   objPosition1.GetComponents dblRectPos
   dblRectPos(9)  = 100.0
   dblRectPos(10) = 100.0
   dblRectPos(11) = 0.0
   Set objRectangle = objArrProd1.ArrangementRectangles.AddRectangle (objMove1,dblRectPos, 50.0, 50.0)
...

Note that the ArrangementRectangle object is created using the ArrangementArea as the movable object.

Adding a Rectangular Contour to the ArrangementArea Object

...
   '---------------------------------------------
   ' Add Rectangular contour to Area
   objArea.ArrangementContours.AddRectangularContour(objRectangle)
...

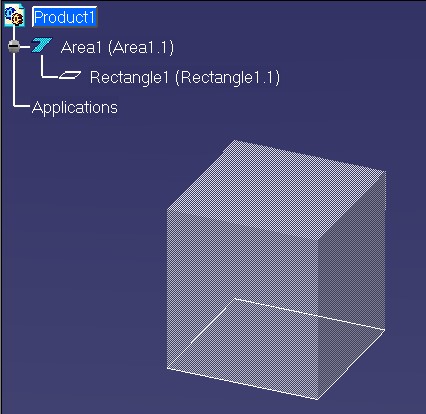

The ArrangementArea object is now displayed with its boundary as shown in the image above.

Epilog

...
 End Sub

[Top]


In Short

This use case has shown how to create an ArrangementArea object with a rectangular contour within a product document.

[Top]


References

[1] Replaying a Macro
[2] ArrangementItemAreas, Product, ArrangementProduct, ArrangementArea, ArrangementRectangles, ArrangementRectangle
