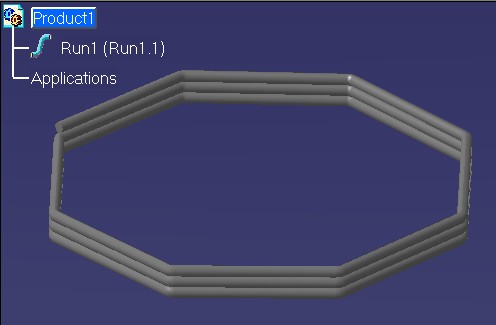

This macro shows you how to create an ArrangementRun under a product.
This macro opens a new Product document and retrieves the ArrangementRuns collection from the root Product via the ArrangementProduct object. It then adds an ArrangementRun object. Once the ArrangementRun object is created, the individual ArrangementNode's that make up the object are retrieved and the bend radius is applied on them.
CAAArrCreateRun is launched in CATIA [1]. No open document is needed.
CAAArrCreateRun.CATScript is located in the CAAScdArrUseCases module. Execute macro (Windows only).
CAAArrCreateRun includes the following steps:
- Prolog
- Obtaining the ArrangementProduct Object and the Associated Movable Object from the Root Product
- Creating the ArrangementRun Object under the ArrangementRuns Collection Object
- Modifying Properties (Defining a Rectangular Section, Changing the Visualization Mode and Bend Radii of the Nodes) of the Newly Created ArrangementRun Object
- Epilog
Prolog
...
'----------------------------------------------
'Create a new product document
Dim objProdDoc As ProductDocument
Dim objRootProd As Product
Set objProdDoc = CATIA.Documents.Add("Product")
Set objRootProd = objProdDoc.Product
...
|
Once the new product document has been created, fetch the ArrangementProduct and the associated movable object from the root product of the new product document.
Obtaining the ArrangementProduct Object and the Associated Movable Object from the Root Product
...
'----------------------------------------------
'Retrieving Root Product's Relative Axis and Position Information
Dim objMove As Move
Set objMove = objRootProd.Move
'----------------------------------------------
' Get ArrangementProduct
Dim objArrProd As ArrangementProduct
Set objArrProd = objRootProd.GetTechnologicalObject("ArrangementProduct")
...
|
The ArrangementRuns object is a collection object that manages ArrangementRun object's under a given ArrangementProduct. The movable object serves as the relative axis for the new ArrangementRun object to be created.
Creating the ArrangementRun Object under the ArrangementRuns Collection Object
... ' Create ArrangementRun under the Root Product Dim dblRunPoints(75) As Double Dim dblMathDirection(3) As Double Dim objArrRun As ArrangementRun dblRunPoints(0) = 300.0 dblRunPoints(1) = 100.0 dblRunPoints(2) = 0.0 dblRunPoints(3) = 441.42 dblRunPoints(4) = 158.58 dblRunPoints(5) = 1.25 ... dblRunPoints(72) = 300.0 dblRunPoints(73) = 100.0 dblRunPoints(74) = 30 dblMathDirection(0) = 1.0 dblMathDirection(1) = 0.0 dblMathDirection(2) = 0.0 Set objArrRun = objArrProd.ArrangementRuns.AddRun(objMove,dblRunPoints, dblMathDirection) ... |
The newly created ArrangementRun object is visualized as a curve and does not have any section definition. In addition the nodes do not have any bend radius.
Modifying Properties (Defining a Rectangular Section, Changing the Visualization Mode and Bend Radii of the Nodes) of the Newly Created ArrangementRun Object
... objArrRun.SectionType = CatArrangementRouteSectionRound objArrRun.SectionDiameter = 10.0 objArrRun.VisuMode = CatArrangementRouteVisuModeSolid '---------------------------------------------- ' Change Properties of ArrangementRun Dim intK As Integer For intK = 1 To objArrRun.Nodes.Count objArrRun.Nodes.Item(intK).BendRadius = 10.0 Next objArrRun.SectionType = CatArrangementRouteSectionRound objArrRun.SectionDiameter = 10.0 objArrRun.VisuMode = CatArrangementRouteVisuModeSolid '---------------------------------------------- ' Define Bend Radius of Nodes Dim intK As Integer For intK = 1 To objArrRun.Nodes.Count objArrRun.Nodes.Item(intK).BendRadius = 10.0 Next ... |
Here we define a round section and change the visualization mode to CatArrangementRouteVisuModeSolid.
A bend radius of 10 mm is then applied to each of the ArrangementNodes
that makes up the object.
Epilog
... End Sub |
