Structure Design

Modifying Structure Objects

This macro shows you how to modify structure objects.

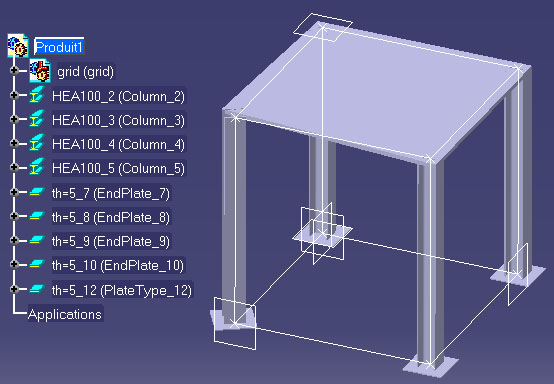

This macro modifies some member and plate properties in the document created using the CAAStrCreateOfStructureObject  macro.

CAAStrModificationOfStructureObjects is launched in CATIA [1]. One document is needed.

You have to run the CAAStrCreationOfStructureObjects macro before running this macro.

CAAStrModificationOfStructureObjects.CATScript is located in the CAAScdStrUseCases module. Execute macro (windows only).

CAAStrModificationOfStructureObjects includes four steps:

1. Prolog
2. Retrieving  members
3. Modifying members
4. Retrieving plates
5. Modifying plates

Prolog

  ...
    Dim doc As Document

    Dim StrWorkbench As StrWorkbench
    Dim strFactory As StrObjectFactory

    Set doc = CATIA.ActiveDocument
    Dim rootProduct As Product
    Set rootProduct = doc.Product

    Set strWorkbench = doc.GetWorkbench("StrWorkbench")
  ...

This step describes how to get the structure workbench.

Retrieving members

  ...
   Dim strMembers as StrMembers
   Set strMembers = rootProduct.GetTechnologicalObject("StructureMembers")

   Dim member as StrMember
   Set member = strMembers.Item("Column_3")
  ...

This step describes how to get the collection of members and how to get one specific element in it.

Modifying members

...
   member.Rotate(45.0)
   member.CurrentAnchorPointName = "catStrTopCenter"
  ...

We rotate the member and we change its current anchor point.

Retrieving  plates

...
    dim strPlates as StrPlates
    Set strPlates = rootProduct.GetTechnologicalObject("StructurePlates")

    dim plate as StrPlates
    set plate = strPlates.Item("PlateType_12")

...

This step describes how to get the plate collection and how to get one specific element in it.

Modifying plates

...
  plate.ReverseDirection

  plate.StandardThickness = 0.020

  rootProduct.Update

...

We reverse the material orientation of the plate and we change its thickness.
