Note: The tab described in this section may not appear on your workbench if your configuration does not include the Tool Selection Assistant add-on to this product's configuration.
This page deals with the Fastener Attributes option
for DPM - Fastening Process Planner.
Features in Manufacturing Hub |
![]() |
This
has the option to choose whether the position of features should be
loaded to V5 with respect to the world coordinate frame or relative to
the part. This can be set using the following. Position is used for visualization of feature in 3D viewer. In V5 position information is displayed in Properties dialog box. |
![]() |

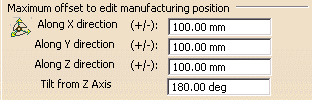

Maximum offset to edit manufacturing position |
|
When users edit manufacturing locations, they can set
constraints on how far the manufacturing locations can be set from their
design location.
|
![]() |
Manufacturing Position Management |
|
|
![]() |
