Display Modes

• Point,
• Scan or Grid,
• Mesh,
• Light Visualization,
• Dynamic Display,

and applies to the clouds of points you create after having defined those display modes.

Point

Sampling lets you display only a percentage of the points making a cloud.
By default, 100% of the points are displayed. You can change this value with the associated spinner.
Example:
Sampling=100

Sampling=25

Colored relates to clouds of points that contain color information (e.g. imported from a Ascii RGB file).
Select the Colored check box to display the points in the color contained in the Ascii RGB file.
Otherwise, the display color will be that defined in the Graphic Properties menu.

Symbol relates to clouds of points that contain symbol information.
Select the Symbol check box to display the points as the symbols contained in the imported file.
Otherwise, the display symbol will be that defined in the Graphic Properties menu.

Protected is not yet available.

Scan or Grid

Select the required check box to display scans or grids as polylines:

or as points:

You can select both check boxes.
Orientation is not yet available.

Mesh

Select the required check boxes to define the display of meshes:

• Vertex to visualize only the vertices for a lighter display
  (do not forget to de-activate the Smooth, Flat or Triangles options)
  instead of
• Triangles to display the triangles,


• Free Edges to display the free edges in yellow.
  The free edges displayed are those of the complete cloud of points:

  • if you activate only a portion of a cloud of points, the free edges of that portion are not displayed.

  • if you remove a portion of a cloud of points, the free edges of the remaining portion are displayed.

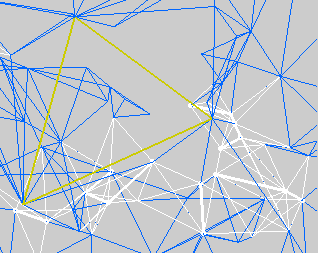

• Non-manifold Edges to display the non-manifold facets and their vertices in bold white lines.
  If you choose the display of triangles, the triangles accepting a non-manifold edge have
  their edges displayed as regular white lines.

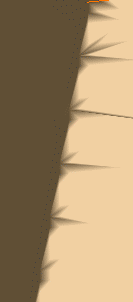

• Flat

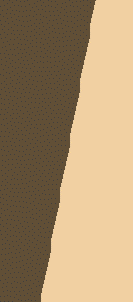

  or Smooth

  (you cannot combine both).

Shrink and Normal are not yet available.

Light Visualization

Select the Activate light visualization of meshes check box and set a Number of triangles.
If the number of triangles contained in a mesh is greater than the number you have defined, the light visualization mode is activated.
Note that:

• this mode is applicable only to a mesh visualization.
• the light visualization mode improves performances, but degrades the visualization quality.

Dynamic Display

Select the Dynamic display of information check box to activate the dynamic display of information:
