Wire Routing

This page deals with the options concerning:

Separation Code File

This option is used to define separation code rules to optimize the routing.

No Rule

The separation code is not used. The routing is done according to the shortest route found.

It is the default value.

File Based
The separation codes may be File Based.
In this case, define the path to access the compatibility table by clicking the Browse button to choose the separation code file.
This file is used during the automatic routing.

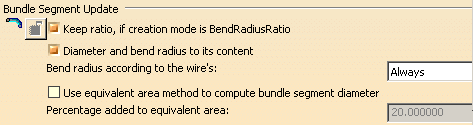

Bundle Segment Update

Keep ratio, if creation mode is Bend Radius Ratio
Selecting this check box means that, Bend Radius Ratio for a branchable is maintained even during Wire Routing. This option will ensure that, during Wire Routing, the creation mode of the branchable is maintained.
If the option is cleared, all the bundle segments will be updated depending on Diameter and bend radius to its content and Bend radius according to the wire's option selected.

Clearing this option will unset the Bend Radius Ratio value and change the creation mode from Bend Radius Ratio to Bend Radius.

By default, this check box is selected.

Diameter and bend radius to its content
Selecting this check box means that, after wire routing, bundle segment diameter and bend radius will be updated based on the wires and wire groups routed through the segment.

Click to clear this option if you do not want bundle segment diameter and bend radius to be updated. In case you clear this option, and you subsequently need to update bundle segment diameter, you will have to force the update of each multi-branchable document:

  • Select the Diameter and bend radius to its content option
  • Select Tools > Force Recompute Diameter.

By default, this check box is selected.

Bend radius according to the wire's
Three mutually exclusive modes are available:
  • Never: no update of the bundle segment minimum bend radius is performed.
  • Always: the greatest bend radius of the wires routed in the bundle segment determines the segment bend radius to be applied.
  • Conditional: the wire bend radius is taken into account for update when it is greater than the bundle segment bend radius.

The default mode is Always, and it is enabled if the Diameter and bend radius to its content check box is selected.

Use of equivalent area method to compute bundle segment diameter
If this check box is selected, the system computes the bundle segment diameter based on its content, i.e. wire or wire groups.
For more information on the formula used in the calculation process refer Computing Bundle Segment Diameter in the Electrical Wire Routing User's Guide.

By default, this check box is cleared.

Percentage added to equivalent area
Enter a value, in terms of percent, to be added to the equivalent area.

By default, the value is 20, and it is enabled if the Use equivalent area method to compute bundle segment diameter check box is selected.
