Manipulators

This page deals with the options concerning:

Translator properties

Defines the control points manipulator options:

Color

Defines the color of the control points manipulator.
By default, the color is green. See the screen capture.

Cross

Defines the cross representation for the control points manipulator:
  • a line.
  • an arrow.
  • a triangle.
By default, the direction representation is a line.

Center

Defines the center representation for the control points manipulator:
  • a plus.
  • a point.
  • a circle.
By default, the center representation is a point.


By default, this option is not selected.


By default, this option is not selected.

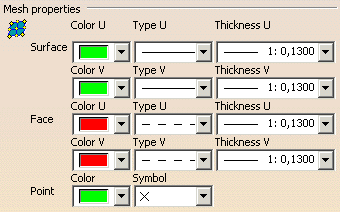

Mesh properties

Defines the control points mesh options for surfaces and faces point options for points:

Color U (Surface/Face)

Defines the color along U of the control points mesh.
By default, the color is green. See the screen capture.

Type U (Surface/Face)

Defines the line type along U for the control points mesh.
By default, the type representation is a solid line.

Thickness U (Surface/Face)

Defines the line thickness along U for the control points mesh.
By default, the line thickness number is 1

Color V (Surface/Face)

Defines the color along V of the control points mesh.
By default, the color is green. See the screen capture.

Type V (Surface/Face)

Defines the line type along V for the control points mesh.
By default, the type representation is a solid line.

Thickness V (Surface/Face)

Defines the line thickness along V for the control points mesh.

Color (Point)

Defines the colors of the points.
By default, the color is green. See the screen capture.

Symbol (Point)

Defines the point symbol.

Mouse Cursor

Defines the mouse cursor shape.
