Accessing this
behavior |
This behavior can be accessed by clicking the
Load icon ( )
in the Doc Based Behaviors toolbar. |
Describing this
behavior |
This behavior enables to load a document by
specifying the name of this document. For all documents types, the expert
user can:
- Leave the path unset. In this case, the behavior can operate and
opens a File Open dialog box enabling you to select a file
|
- Specify the complete path
|
- Specify the name of the document: In this case, the system uses
the directory indicated in the
CATGraphicPath .
|
If the CATGraphicPath variable is set to E:\users\xxx\Documents ,
the system will perform a search in this directory. |
More information |
- Note that:
- The output feature of this behavior is a document corresponding to
the name of the selected document.
- The system does not make the document active.
|
 |

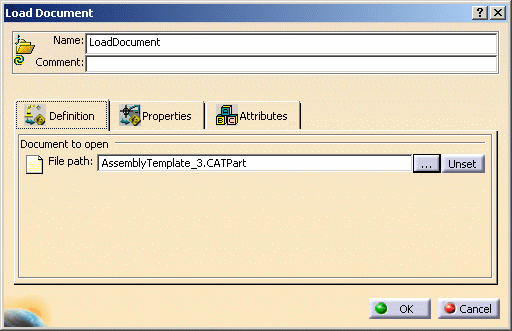

Using this
Behavior Interface |

Name: |
Name attributed to the behavior. |
Comment: |
Comment attributed to the behavior. |
Document to open |
File path: |
Click
to select the
document to open. |
When working in an ARM environment, click ARM
Browser to navigate to the ARM catalog that contains the
template and select this template. For more information about ARM,
see CATIA Infrastructure User's Guide. |
|
Using this
behavior |
I have a wheel that I want to instantiate 4
times into a vehicle. I use the Load behavior and I instantiate the wheels
4 times. |
