Mirroring Annotations

This task shows you how to mirror reversed annotation relative to the screen view.

Open the Annotations_Product_04.CATProduct document.

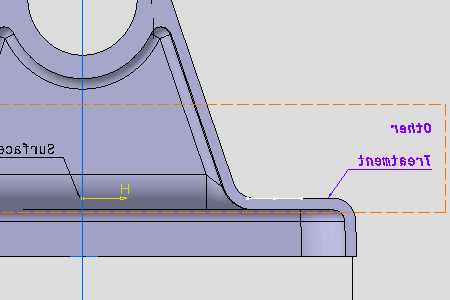

  1. Turn the part to show annotations reversed.

  1. Click Mirror Annotations  in the Visualization toolbar.

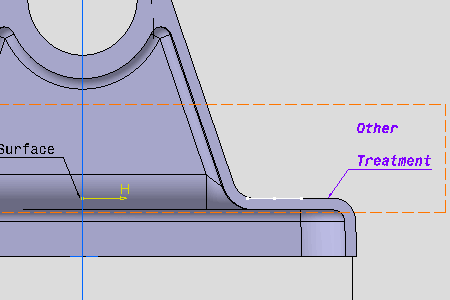

All reversed annotations are mirrored.
  • In the CATProduct or CATProcess context, the Mirror command has no effect on annotations linked with parts in Visualisation mode. See Cache Management for CATProduct and CATProcess Document for more information on this mode.
  • When activating a 2D Layout window, mirrored annotations are automatically reinitialized to their creation position display.
