About Version Information
Version information provides a stable value for the exact
measurement. The measurement value is associated to the V5 level Release
N on which the data were created (the measure is strictly V5 level
Version dependent); it does not depend on the V5 level Version on which
the data is loaded.
Example

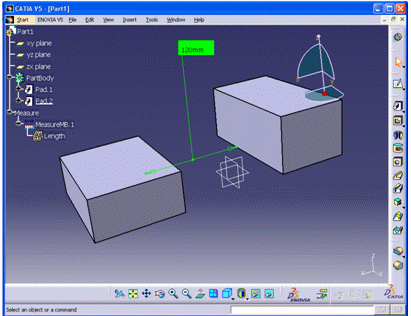

Let's take a simple assembly comprising two pads: pad1 and pad2
contained in a part document (Part1)
- Open this part on V5 level Release 17.
- Create a measure MeasureMB.1 between the two pads in exact mode
and save it.
- Save the Part.1
- Now, open the Part.1 on the next V5 level (Release 17+N)
 |
- If you update MeasureMB.1, the results will be identical
to the values created on V5 R17 level
- On the next level (V5 Release 17+N), if you edit
MeasureMB.1 and change the inputs, the measure calculation
will be based on the V5R17 measure functionality. But if you
create a new measure, the calculation will be based on the
V5R17+N measure functionality.
|

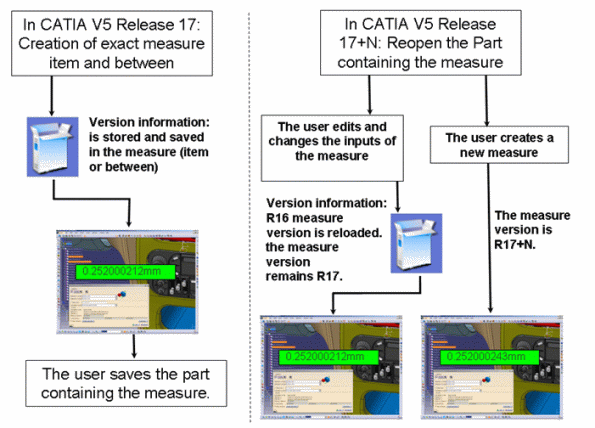

Behavior's Illustration
The following scheme aims at summarizing the
versioning behavior:
|
 |
|
