Loading and Saving the Volumetric Context

The Load Volumetric Context command allows you to quickly load products within a specified volume in DPM.



Loading the Volumetric Context

  1. Select Load Volumetric Context in the Process Context Builder toolbar.
    The Volumetric Context dialog box is displayed.

    The Volumetric Context dialog box presents the following options:

Load Context Representation

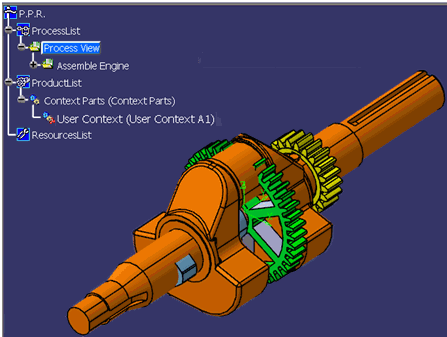

If any existing context (with representation in the form of a rollup CGR) is previously saved on the loaded process or one of its parents, this option is enabled. When this option is selected, the context representation is loaded into the DPM session. A node called Context Objects is created under the Product List node of the PPR tree. A sub node with name same as selected context is created under Context Objects node if it does not exist. It can be Volumetric Context, Manufacturing Context, or User Context. The context representation is assigned to this node. Under the sub node, no products of the context will be loaded, as you are loading only representation. You can load only one context representation in a loaded document. If a context is already loaded and you tries to load a context representation, the already existing context will be removed from the document and a new context representation will be added. If you tries to load a second representation in same document, first context representation will be removed and second one will be loaded.

Load Context Objects

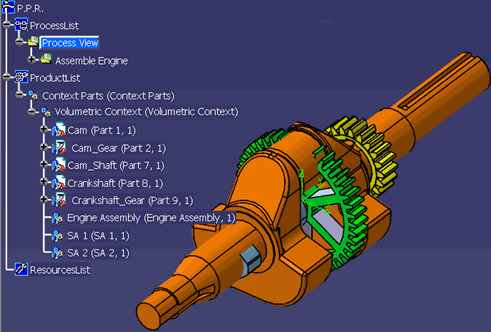

If any existing context is previously saved on the loaded process or one of its parents, this option is enabled. When this option is selected, all of the products in the saved context are loaded into the DPM session. A node called Context Objects is created under Product List node of the PPR tree. A sub node with name same as selected context is created under Context Objects node if it does not exist. It can be Volumetric Context, Manufacturing Context, or User Context. Under this sub node all the products of selected context are loaded in a flat list. Each product have a graphical representation that is extracted from PDM system (ENOVIA) or optionally from file system (Tools > Options). The position of each product is retrieved from the Manufacturing Hub (absolute position of the product). You can load only one context (Volumetric/Manufacturing/User) in a loaded document. If you wants to see the context as combination of multiple contexts, then you will have to create own context (user context) and load that context. If you tries to load a second context in same document, the first context will be removed and second one will be loaded. If a context representation is already loaded and you tries to load context, already existing context representation will be removed and new context will be loaded. If some products of the context are contained within the product tree, such parts will be ignored and not loaded as part of the context. Such parts will continue to belong to the product tree. The loaded products will be filtered to meet the specified filter criteria while loading the reference process in DPM.

This option is enabled only when the previously saved context data meets the following requirements:
In all the three commands, if you selects this option and clicks OK button, all the products in the selected context will be loaded in DPM as a FLAT list of products as shown and explained below. If there are no pre computed contexts available, then this option will be grayed out.

Specify Volume and Load

This option is always enabled, and allows you to define a new volume using a bounding box. All products belonging to the specified volume are loaded into DPM. Previously saved volumetric context (if any) existing on the loaded process will be loaded in DPM by setting Tools > Options > Digital Process for Manufacturing > Manufacturing Hub Advanced Option > Automatically Load Volumetric Context at Load Time

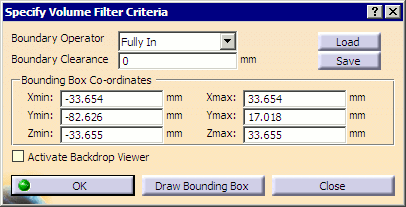

When this option is selected, the Specify Volume Filter Criteria dialog box is displayed.

Here, a volume filter may be defined in the same manner as is described for Loading the Manufacturing Context.

Once the volume filter has been defined, click OK.

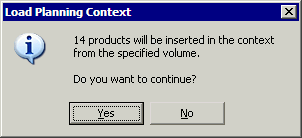

The Load Planning Context dialog box indicates the number of products that will be loaded as part of the volumetric context.

Click Yes to load all products child nodes of Context Parts in the Product list of the PPR tree. The graphical representation of each product is extracted from ENOVIA, and the position of each product is retrieved from the Manufacturing Hub.

Saving the Volumetric Context

  1. If you compute and load a volumetric context using Specify Volume and Load option, and select File > Save or File > Save to Manufacturing Hub with new Detailing. The computed volumetric context is saved back to the Context detailing.

    • Any existing volumetric context on the loaded process will be overwritten.

    • If the context detailing is already present on loaded process and no volumetric context present in the blob, then a new volumetric context is save in the context detailing.

    • If the context detailing is not present, a new context detailing is created on the loaded process and volumetric context is saved in the new context detailing.

  2. With a volumetric context loaded (i.e., a list of products under the Context Parts node of the PPR tree), select File > Save or File > Save to Manufacturing Hub with new Detailing.

    The following information is then saved back to the Manufacturing Hub:

    • Each context product identifier

    • Rollup CGR filename, if one has been generated.

    Context information is saved as a detailing on the loaded process.

Modifying the Loaded Context

After loading a pre-computed context in DPM session, if you modify the contents of the context, then during File > Save or File > Save to Manufacturing Hub with new Detailing the modifications will be saved back to the Manufacturing Hub to the respective context in context detailing.

  • You can remove specific objects from "Context Objects" when invoking File > Save or File > Save to Manufacturing Hub with new Detailing, all such changes will be saved to respective context in context detailing.
  • You can generate Rollup CGR for loaded context by invoking the contextual command "Save As CGR" on the child node of "Context Objects" node. In such cases, if you executes the command File > Save or File > Save to Manufacturing Hub with new Detailing, information about the rollup CGR will be added to respective context in context detailing.

After loading a pre-computed context in DPM session, if you modify the contents of context during File > Save then the changes will be saved back in the Xml blob in respective context. Specific objects may be removed from the Context Parts folder in the PPR tree. When File > Save is then invoked, all modifications are saved to the respective context in context detailing. The information about new generated Rollup CGR is also added to context detailing. If you compute and load in DPM session, a new manufacturing context using V5 client then changes made to this context will be saved in the detailing and not in context detailing.

Specific objects may be removed from the Context Parts folder in the PPR tree. When File > Save is then invoked, all modifications are saved to the Manufacturing Hub.

Notes

  • When context information is loaded in a DPM session, redefining a volume filter triggers the removal of the current Context Parts folder (and all its children), and then reloads the entire context based on the new volume.

  • When context information is loaded in a DPM session from a parent of the loaded process, a subsequent File > Save triggers the save of the context information on the loaded process.

Limitations

  • Reloading the product volumetric context through volume filtering removes the existing context and creates a new context. A subsequent File > Save permanently deletes the old context, and the new context is saved for future use.
  • If any relations are created between processes and contextual products (such as process to product, visibility activity, or any other exposed activity in the Manufacturing Hub), a subsequent load causes the contextual products to be created in the Product tree (provided that the products are included in the selected BOM).
  • The volumetric context consists only of Product objects (not Resource objects).
  • The volumetric context will be loaded as a flat list of products (Context Parts). If the defined volume incorporates a component assembly that contains child products, the context loads the component assembly as an individual product and the children of the component assembly are loaded as siblings.
  • The creation of any applicative data like simulation data (not exposed in the Manufacturing Hub) on the contextual products is not saved. Therefore, reloading the context will lose such applicative data.
  • Any changes to contextual products in DPM (such as modifying the position, modifying the attribute values or changing the product hierarchy) is not saved to the Manufacturing Hub.
  • If a volumetric context was loaded because it was defined on a parent process, any modification done to the context is saved on the currently loaded process. (The parent context is not overwritten.)
  • When defining the volumetric context via the volume filter, only the Fully In and Partly In filtering modes are supported.
  • The locking and user rights information are not valuated on the products that belong to the volumetric context. The Get edit information command does not display lock or user rights on the products that belong to the volumetric context.
  • The contexts (Volumetric/Manufacturing/User) saved to the manufacturing hub with valid schema will be loaded. You cannot manipulate context saved in manufacturing hub outside V5 environment.
  • The absolute positions of the product is considered for context.
  • Resources will be included in the Volumetric Context computation if only they have valid Bounding Boxes specified for them in the Manufacturing Hub.
  • The geometry will not be loaded in V5 DPM for resources which are loaded as part of a context and have geometry coming ENOVIA. Only file based geometry will be loaded for resources.
  • If V5 client side manufacturing context is already loaded in the document, then it will not be removed from the document when you loads any new server side context (Manufacturing, Volumetric, or User).
