Visualization

In a hybrid design environment, features are visualized in the same way as in a traditional environment: if you apply the Hide/Show command onto Part Design features within a body, only the Part Design features belonging to that body are affected by the operation. Conversely, if you apply the Hide/Show command onto Shape Design features within the same body, only the Shape Design features belonging to that body are affected by the operation.

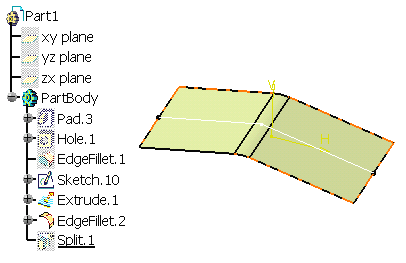

In the example below, applying the Hide/Show command onto Hole.1 hides all Part Design features.

Conversely, applying the Hide/Show command onto EdgeFillet.2 hides all Shape Design features.

Hiding or Showing All the Features of a Body

If you wish to show or hide all the Part Design and Shape Design features belonging to the same body, you need to select the body and then apply the Hide/Show capability.
