Importing Applicative Data from a Document in Session



This task shows you how to insert applicative data from a document in session.
  You can now choose to always create imported applicative data in a DMU Review at highest level. See Customizing DMU Navigator, DMU Navigator.

  1. In the Insert menu bar, select Import Applicative Data.
    The Document selection dialog box appears.



  2. Click the selection button and select the document from which you wish to import applicative data from the proposed list.

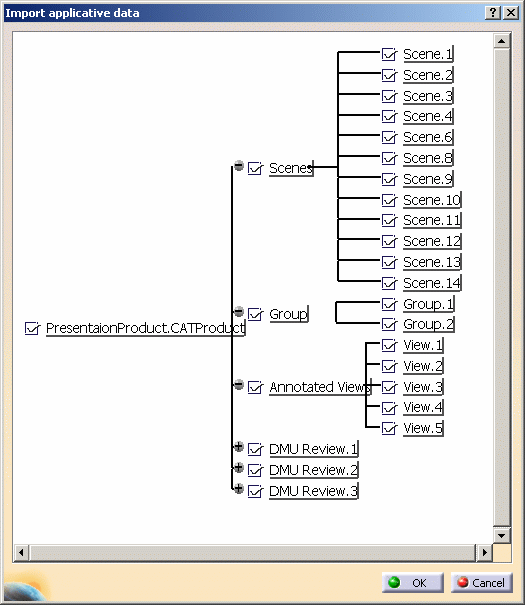

    The Import applicative data dialog box appears, proposing the different applicative data that can be imported.

  1. To de-select any of the applicative data subsets or items, click the appropriate checkbox.

  2. Click OK to confirm.

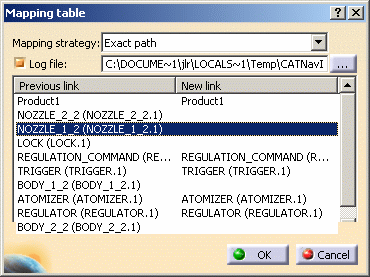

    The Mapping table dialog box is displayed.
    All the target links that have been automatically found are displayed.



  3. You can fill in missing links or modify links by selecting the requested line and then clicking on the desired component, in the 3D or Specification Tree. Note that all applicative data selected in step 7 will be imported, even if there are missing links to the target product (i.e. you left some links unselected in the mapping table).

    The applicative data will be inserted in the form of a Review (to manage a Review, see DMU Review).
  • The log file is optionally activated by clicking the Log file checkbox. You can specify the path by clicking the "..." icon and navigating to the desired directory.
  • Import Applicative Data functionality may give improper result, if you are not using the same product structure in source and target product.
