- Please note that all MULTICAx
Plug-ins are on a dedicated media. You need this media to install them.
- Never modify data generated in V5: information could be lost and the
MULTICAD Update could result in incorrect results.
- Part Number must be unique,
all parts with the same name are considered as identical.

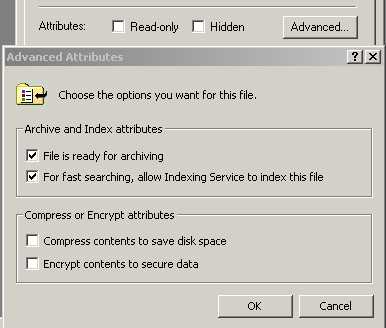

- On Windows, make sure the files to translate are not encrypted: push
the Advanced button in the Properties dialog box of the file
and uncheck the Encrypt contents to secure data option.
- UG compressed files are not supported. Please save the files as
uncompressed in UG to read them in V5.
|
|
The MultiCAx UD Plug-in is supported on Windows 32 bits and 64
bits.
The MULTICAx Unigraphics (UD) Plug-in allows you to import:
- Unigraphics native data (*.prt) (part and assembly models). This
import converts Unigraphics part geometry into the CATIA Graphical
Representation (CGR) or CATPart formats, which renders it readable by V5.
The MULTICAx (UD) Plug-in imports Unigraphics assembly files into a V5
product structure document. You can perform this import interactively or
from the command line.
- Parasolid
The assembly import converts the Unigraphics assembly hierarchy into
product structure, along with the proper positions. No attributes of the
assembly other than hierarchy, positions, and colors of the geometry are
addressed in assembly import.
For conversions, the following protocols or attributes apply:
- Length units for both parts and assemblies are converted to
millimeters.
- Assembly-level colors and other features are not supported.
- Pure wire frame data is not supported during the conversion.
- Text and annotations are not supported.
|
|
MSXML 6.0 must be installed on your machine before running the converter. |
|
*.prt, *.x_t and *.x_b extensions are
not natively supported in CATIA, DELMIA and ENOVIA therefore the following
products are required to access these extensions: UDL licenses (CATIA,
ENOVIA), UDP (DELMIA). |
|
For Windows:
|
 |
CAD Format |
Part |
Assembly |
Drafting Support |
Foreign CAD
license required |
File extension |
V5 License |
UG V15 up to UG NX5 |
OK |
OK |
KO |
No |
.prt |
UDL (ENOVIA,CATIA)
UDP (DELMIA) |
Parasolid
up to V18 |
OK |
KO |
N/A |
No |
.x_t,.x_b |
UDL (ENOVIA,CATIA)
UDP (DELMIA) |
VDA-FS |
OK |
N/A |
N/A |
No |
.vda |
(**) |
|
|
(**) VDA-FS data is read with any of the following MultiCAx plug-in
products installed (no licenses required): PDL,
DAL, DEL, DSL, UDL.
|
