Design Check Settings

This task explains the design check settings:
  • Electrical functions for Shipbuilding
  • Relations and Parameters in CATIA tree

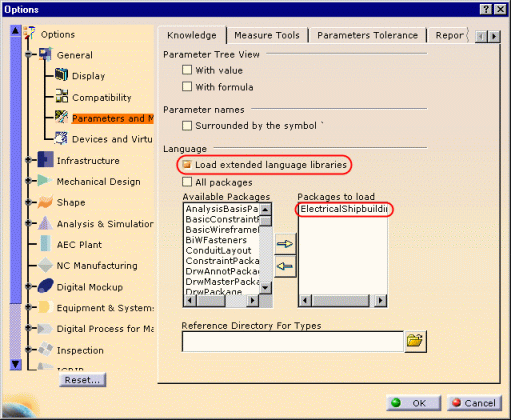

  1. Click Tools -> Options -> General -> Parameters and Measures and select the Knowledge tab.
    The Options window displays.

  2. Check the Load extended language libraries option.

  3. Select the ElectricalShipbuilding package in the left-hand list and click the right arrow.

    The ElectricalShipbuilding package is listed in the packages to load.

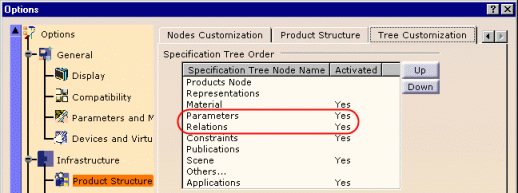

  4. Click Tools -> Options -> Infrastructure -> Product Structure and select the Tree Customization tab.

  5. For the Parameters and Relations nodes, click the respective lines in the Activated column.

    The Yes option is shown:

  6. Click OK to validate.
