Creating a Tolerancing Capture

• Functional part area.
• Specifications answering to given functional requirements.
• 2D view equivalent.
• 2D sheet equivalent.
• etc.

1. Click Capture  in the Capture toolbar.

   The Capture Definition dialog box appears.

2. Click the More>> button.

   The Capture Definition dialog box is expanded.

   The Capture Definition dialog box displays the following information: The capture feature name. Display in 3D: displays the capture in the geometry window. Hidden Text: displays a text as tooltip when passing over the capture feature in the specification tree or geometry window. You can leave the field blank. Append External File Content: imports from a text file the hidden text content. Reset Field: empties the hidden text content.

3. Select the Display in 3D option.

4. Type in the Hidden Text field the following text: This is the capture hidden text

5. Click OK in the Capture Definition dialog box.

   You are now in the Tolerancing Capture workshop.

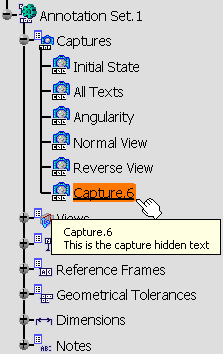

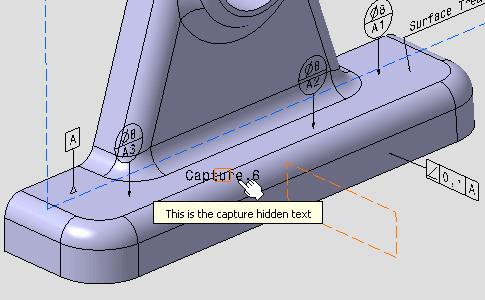

   The Capture.6 is created and displayed in the specification tree and geometry window. The name of the capture and a rectangle framing the middle characters of this name appear in the graphic area, and they form the capture callout. When you rotate the part, the capture callout remains parallel to the screen. The hidden text is displayed when passing over the capture feature.

   The text of a capture callout is not editable, but follows the modifications of the capture name. The capture properties enable you to customize the display of the capture callout. The Position And Orientation toolbar applies to capture callouts: for capture callouts with an associated camera: The X,Y manipulation applies to the text of the callout, The Z manipulation applies to the text and the pyramid of the capture callout. for capture callouts with no associated camera: The X,Y manipulation applies to the text and the frame of the callout, The Z manipulation is not relevant. The capture callout is not linked to any annotation plane. The capture callout orientation is fully controlled by the 3D point of view attached to the capture. If you change a camera associated to a capture callout, the previous capture callout is deleted and a new one is created. If you remove a camera associated to a capture, the capture callout remains unchanged, the information No camera is displayed in the camera list.

6. Move and rotate the part like this.

7. Click Named Views

   Create a camera is also available for any workbenches from the View > Named Views... menu.

8. Click Add in the Named Views dialog box which appears.

   The Camera  1 is created. The part location and zoom are recorded in the camera properties. Click the Properties button in the Named Views dialog box to edit these properties. As the 3D shape orientation and zoom are recorded in the capture properties, this information is kept even when the associated camera is deleted. In this case, UndefCam is displayed in the combo list of the Capture Options toolbar.

9. Select Camera  1 in the combo list of the Capture Options toolbar.

   Camera  1 is now associated with Capture.6. The flat rectangle framing the name of the capture is replaced by a rectangular-based pyramid that represents the 3D view point, see: When the capture is activated, the apex is displayed at the center of the screen and the base of the pyramid is parallel to the screen The name of the capture can be moved and a leader can be added.

10. Click Exit from capture .

    You are back in the Functional Tolerancing and Annotations workbench.

    To edit a capture, double-click the capture in the specification tree, or the geometry window when it is displayed. We enter the Tolerancing Capture workshop, for editing the capture. When exiting Capture Edition, all the modifications (Show/NoShow status of the annotations, active view, camera, clipping plane, etc.) are kept i.e. visual status of the CATPart is the same as capture edition. To get back to the previous state, user should create a specific capture before and recall it just after exiting the capture workshop.

3D Preview of capture

When a capture is selected in 3D or in the feature tree, the clipping and section profile of the active view in the capture are displayed.

The clipping plane and section profile of the active view inside a capture are displayed only if the 3D-Annotation-Query Switch On/Switch Off in the Visualization toolbar is active.

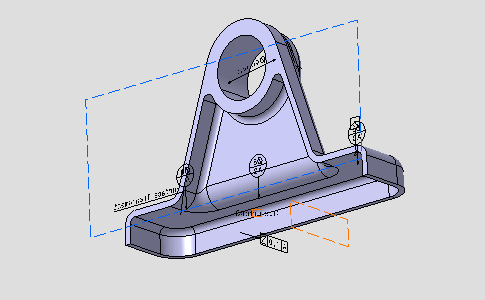

You can see that the section profile is displayed as thick orange line and the clipped surface is seen as the green section.

• The clipping plane, which is visualized, helps in better visualization when the active view in a capture is clipped.

• Section profile is displayed as thick line. The section profile is shown only when the active view of the selected capture is a section cut or a section view. For other views only the clipping will be seen not the profile.

• The clipped part, which is seen, is similar to when the Clipping Plane option is activated. The properties for the representation of the clipping plane is taken from Tools > Options > Mechanical Design > Functional Tolerancing & Annotation, Display tab, Hatching, coloring or dotting for clipping plane area, Display option set for the clipping plane.

• The status of Clipping Plane command does not impact the capture selection process. Even if the command is deactivated the clipping profile is seen and the view is clipped on capture selection.

• If Clipping Plane command is activated, the clipping of the active view is displayed. If a capture is selected whose active view is different from the active view in the CATPart, then the clipping of the active view is replaced by the clipping of the active view in the capture. The clipping of the active view will be restored when no capture is selected.

• If more than one capture is selected, then the last selected capture is taken into account and the profile and clipping plane of its active view is displayed.

• The Show/No Show status of the capture does not change the behavior. Even if the capture is in No Show mode, the clipping plane and the section profile are still displayed.
