Adding the All Around Symbol

This task shows you how to add the All Around symbol to an annotation.

Open the Annotations_Part_04.CATPart document:

Improve the highlight of the related geometry, see Highlighting of the Related Geometry for 3D Annotation.

Click the annotation text.
Right-click any manipulator and check All Around from the contextual menu.
Un-select the annotation.

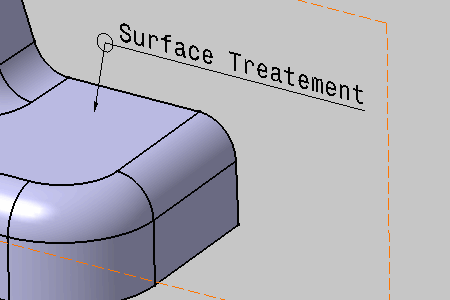

You obtain this result.
