This task shows you how to extrude faces and edges. |
 |
A CATPart document must be open. |
 |
-
Click Extrusion
in the Styling Surfaces toolbar.
 |
You can also access this command by pressing
ALT+SHIFT+X. |
-
Select a surface.
A Tools Palette is displayed. |
 |
The following icons let you: |
|
|
|
|
|
Extruding Faces
|
 |
Open the
Extruding1.CATPart document. |
|
-
Click Face Extrusion
.
-

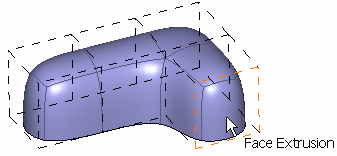

Select a face.
-
Click to add a face.
An extrusion made of five faces is created. The extrusion
direction is normal to the selected face. |
 |
|
|
Multi-Selecting Faces
|
|
-
Click Face Extrusion
.
-
Press Ctrl to select several faces.
-
Click to add as many faces, as you wish.
|
|
 |
As an alternative, you can also use the
Shift key and draw a trap to extrude several faces. |
|
|
Creating a Hole Inside a Closed Surface
|
 |
Open the
Extruding7.CATPart document. |
|
-
Click Face Extrusion
.
-
Press Ctrl and select a face on each side of
the surface. Selected faces must be face to face.
|
|
Filling Faces
|
 |
Open the
Extruding10.CATPart document. |
|
-
Click Face Extrusion
.
-
Press Ctrl to select the four connected faces
to fill the hole.
|
|
 |
As an alternative, you can also press
Shift and draw a trap to fill the hole. |
|
|
Combining an Extrusion
|
 |
Open the
Extruding5.CATPart document. |
|
-
Click Face Extrusion
.
-
Press Ctrl to select the two connected faces.
|
|
Joining Two Unconnected Face-to-Face Faces
|
 |
Open the
Extruding6.CATPart document. |
|
-
Click Face Extrusion
.
-
Press Ctrl and select the two faces to
connect. Selected faces must be face to face.
|
|
 |
As an alternative, you can also use the
Shift key and draw a trap to join the faces. |
|
|
Extruding Edges
|
 |
Open the
Extruding4.CATPart document. |
|
-
Click Edge Extrusion
.
-

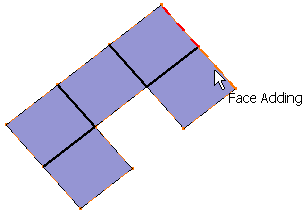

Select an edge.
 |
You can only select the free edge of an open
surface. |
 |
-

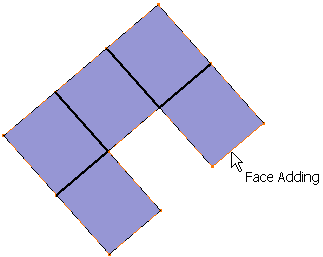

Click to add a face.

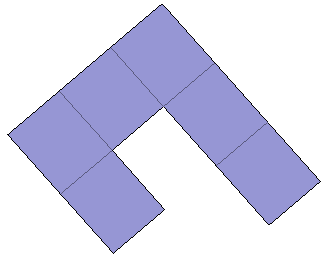

A single face on a plane is created. It is defined by the mean
plane of the face connected to the edge. |
 |
|
|
Multi-Selecting Edges
|
|
-
Click Edge Extrusion
.
-
Press Ctrl to select several faces.
-
Click to add as many faces as you need.
|
|
 |
As an alternative, you can also use the
Shift key and draw a trap to extrude several faces. |
|
|
Extruding Using the Fill/Inactive Fill Modes
|
|
-
Click Edge Extrusion
.
New icons are available in the Tools Palette. |
 |
They let you: |
-
select the Fill mode
|
|
|
|
|
Fill
Mode
|
|
-
Click Fill
.
-
Select any border to fill the hole.
2 edges: |
 |
 |
3 edges: |
 |
 |
4 edges: |
 |
 |
|
|
 |
You can press Shift and draw a
trap to fill a hole. |
|
|
Extrusion Mode
|
|
-
Click
Extrusion
.
-
Press Ctrl
to select the edges.
Along an edge: |
 |
 |
With a Corner: |
 |
 |
All edges: |
 |
 |
|
|
 |
The icons
Fill
and
Extrusion
are
used when the extrusion is ambiguous. If there is no ambiguity,
only one of both icons is available.
The examples below show this ambiguity. |
|
 |
Open the
Extruding9.CATPart document. |
|
Fill mode
|
Extrusion mode
|
|
-
Click Edge
Extrusion
.
-
Click Fill
.
-
Press Shift and draw a trap to create the
extrusion.
In this example, draw two traps: |
 |
 |
Here is the result: |
 |
|
-
Click Edge
Extrusion
.
-
Click
Extrusion .
-
Use the Shift key and draw a trap to create
the extrusion.
In this example, we draw two traps: |
 |
 |
Here is the result: |
 |
|
|
|
|
|
Propagating Edges
|
|
This command lets you propagate the
selection to all the free edges. |
 |
Open the
Extruding9.CATPart document. |
|
-
Click Edge Extrusion
.
-
Click Propagation
.
-
Select an edge, as shown below:
 |
All connected edges are selected to create the
extrusion. |
 |
|
 |
With propagation of edges |
|
Without propagation of edges |
|
|
Filling Multiple Faces using Propagation
|
|
This command lets you propagate the
selection to all the free edges to compute a fill. |
 |
Open the Extruding11.CATPart document. |
|
-
Click Edge Extrusion
.
-
Click Propagation
.
-
Select an edge, as shown below:
 |
All connected edges are selected to create the
extrusion.
You can see that the surface is filled. |
 |
|
 |
-
The number of edges defined for the fill must be lower than 30.
If there are more than 30 edges, fill a few faces individually and
multi-select edges to compute the fill at one time.
-
If the edges have an intersection, the fill will not be
computed.
In this case remove the intersecting face.
-
If the selected edges lie on an external boundary, the fill will
not be computed.
In this case fill the external face.
-
The number of edges passing through a point must be 3 or 5. In
case of any other number, the fill will not be computed.
-
If the mesh has a symmetry axis or plane before
the fill, the mesh
after the fill may lose its symmetry characteristic.
|
|
Symmetric Filling of Multiple Faces using Propagation
|
|
This command lets you propagate the
selection to all the free edges to compute a symmetric fill wherever the
zone to be filled is symmetrical. |
 |
Open the
Extruding12.CATPart document. |
|
-
Click Edge Extrusion
.
-
Click Propagation
.
-
Select an edge, as shown below:
 |
You can see that the surface is filled
symmetrically: |
 |
|
 |
- In case of a subdivision surface with odd number of edges,
the fill is computed with a triangular face.
- In case of a subdivision surface with open edges more
than maximum number allowed (greater than 30 edges), the fill can be
computed in steps. The fill has been computed in various steps
(maximum 30 edges in a step) for the given subdivision surface by
multiple selection using Ctrl and Shift keys.
- In case of a surface with external edge open, symmetric
fill can be computed.
- If two subdivision edges are not joined by a face, fill
is computed.

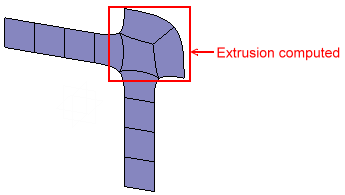

- If two subdivision edges are joined by a face, extrusion
is computed.
|
|
Applying the Extrusion Command
|
|
This command lets you validate the previewed extrusion selection
and apply the modification. |
|
-
Click Apply (Enter) .

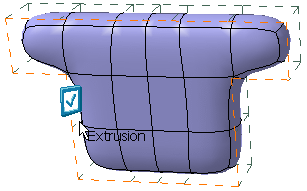

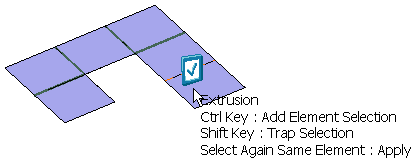

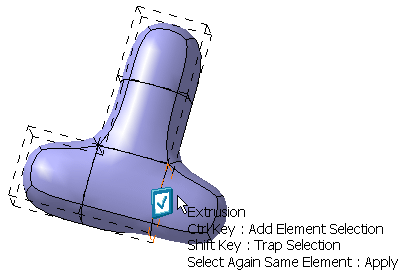

You can also validate by reselecting the same element again. This
information is given in the help text when in detailed mode along with
icon in geometry and the pointer
changes to
. Incase an element can be
validated
but is not active, the
icon is seen and the pointer
does not change.
 |

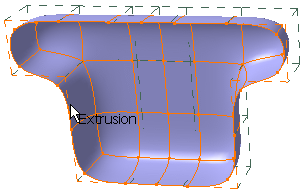

Add Face Mode |
 |
Add Edge Mode |
 |
-
During the
modification, the selection of elements is
previewed on the
surface.
-
The modification
command is executed, only after the selection is validated
using the Apply (Enter) command.
-
The Apply (Enter)
command is
automatically applied before quitting the
modification command.
-
When the modification
is not possible, the Apply
(Enter)
icon is not active
(grayed out).
-
You can undo or redo
the changes only after the execution of the Apply (Enter)
command. Intermediate
selection states cannot be managed by undo/redo.
|
|
 |
