Creating a Surface Using Revolve

This task shows you how to create subdivision surfaces by revolving a curve around an axis.
A .CATPart document must be open.

  1. Click Revolve in Creation toolbar (Sweep Primitives sub-toolbar).

    You can also access this command by pressing ALT+SHIFT+R.

    The following Tools Palette along with screen for curve creation are displayed.


    • reframe on the drawing view
    • selecting new drawing plane
    • creating a curve by adding points to it (this icon is selected by default)
    • manipulating the points
    • aligning the points
    • adding weight to the points
    • erasing a point
    • picking a point
    • closing the curve
    • fill the top, bottom or both ends of an open surface
    • activating the apply mode


Creating a Curve


  1. Click Add Point to begin drawing the curve.

    The fill state of the surface is represented by the Fill Side icons.

  2. Click to add points and draw the curve. The entire curve is drawn so that all options available in Tools Palette can be described in this section.

    You can also access this command by pressing CTRL+SHIFT+S.
    • The created points define the polygon of the curve of subdivisions.
    • The surface can be previewed as the points are created.
    • When a point is added, it can be moved as long as you keep the left mouse button pressed.


Selecting New Drawing Plane


  1. Click Plane Selection to change the drawing plane. The Tools Palette is modified to this only one icon, that is selected by default. Select the new plane.


Adding New Points


  1. Add a new point on existing curve by clicking the left mouse button at the required position. The point can be previewed on the existing curve.
    Once the point is created, the surface is immediately previewed.


Manipulating the Points


  1. Click Move Point to move the point. The point closest to the mouse is manipulated.

    You can also access this command by pressing CTRL+SHIFT+M.

    When this command is activated, four new icons appear in the Tools Palette.
    They let you:

    • set the attenuation factor.
      For more information about setting attenuation, refer to       Setting the Attenuation Factor for a Surface.
    • allow the selection of edges for manipulation.
    • allow the selection of point for manipulation.
    • move the point or edge using the manipulator. This icon is not selected by default, i.e. the manipulators are in OFF state. When selected, i.e. manipulators are in ON state, its display is modified to .

      • If a single point is selected, the manipulator is positioned on the point. If a single edge is selected, the manipulator is positioned at the center of the edge.
      • If multiple points or edges are selected, the manipulator is positioned on the barycenter of the selected points.

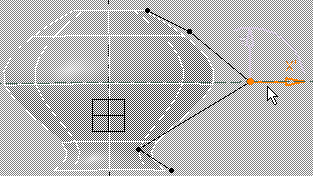

      • To move the point, hold down the left-mouse button and drag the manipulator to the desired location.
      • The direction of displacement is defined by the axis selected on the manipulator. For horizontal displacement, select the X' axis, for vertical displacement, select the Y' axis and for planar displacement select the X'Y' arc.

  2. To move the point, select the point and either:

    • manipulate keeping the left-mouse button pressed.

    • click Manipulator On/Off to activate the ON state and drag the manipulator to move the point.

      Single point selected
      Multiple points selected
      Multiple edges selected
  3. (Optional) Select the point and click Pick a Point . You can select a previously created point.
    The selected point is moved to the projection of the picked point in the drawing plane.

    Selection of a point
    Picking of an existing point
    Manipulation of the selected point


Aligning the Points


  1. Click Align Point to align a point horizontally and vertically.

    You can also access this command by pressing CTRL+SHIFT+Q.

    When this command is activated, three new icons appear in the Tools Palette.
    They let you:

    • allow the selection of edges for manipulation.
    • allow the selection of point for manipulation.
    • align the point or edge using the manipulator. This icon is not selected by default, i.e. the manipulators are in OFF state. When selected, i.e. manipulators are in ON state, its display is modified to  .

      • The alignment using a manipulator is possible when at least two points are selected.
      • The manipulator is positioned on the barycenter of the selected points.
      • To align, click on the required interactive arrow.

  2. Move the cursor over the point you want to align. The segment closest to the mouse is highlighted. Horizontal and vertical segments are seen.

  3. Click the left mouse button. The point close to the mouse is fixed. The second point moves along the horizontal or vertical segment.
    In this case the point below the selected point has moved up.

    The choice of horizontal or vertical segment is automatic and the chosen direction depends on the smallest angle of rotation.

  4. Optional: Select two or more points and click .

  5. Click on the interactive arrow to align the point.

    For points:

    Multiple points selected Manipulation of points

    For edges:

    Multiple edges selected Manipulation of edges


Adding Weight to the Points


  1. Click Attraction to add weight to the point or the edge.
    Three new icons are added to the Tools Palette. They let you:

    • allow the selection of edges for manipulation.
    • allow the selection of point for manipulation.
    • define the attraction mode. This icon has two states: the default state gives a sharp edge and the smooth state (activated when clicking the icon) gives a smooth edge.
    You can also access this command by pressing CTRL+SHIFT+F.

  2. Select the point or the edge.

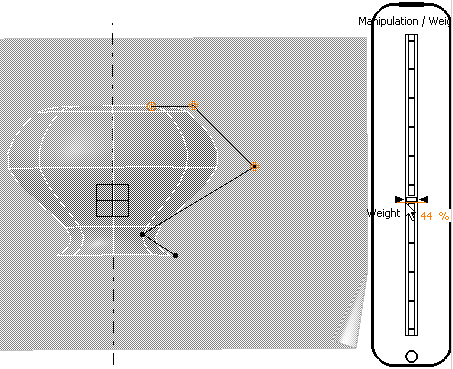

    A slider indicating the value of the weight is displayed on the right of the screen and can be changed between 0 and 100.

  3. Hold the left mouse button and move the mouse to reach the desired value on the weight slider. Release the left mouse button when you are satisfied with the weight added to the surface.


Erasing a Point


  1. Click Erase Point to delete a point.

    You can also access this command by pressing CTRL+SHIFT+D.

  2. Select a point. The point is deleted.


Closing the Curve


  1. Click Close Curve to close the curve. The icon is now changed to .


    Open curve
    Closed curve
    Closed curve in another view
    You can also access this command by pressing CTRL+SHIFT+Y.

  2. Click Close Curve again to open the curve.


Reframing on Drawing View


  1. Click Drawing view reposition the view to drawing view (the plan).

    You can also access this command by pressing CTRL+SHIFT+X.


 Setting Angle and Number of Sections


  1. Press and hold down the right and middle mouse button to rotate and change the view to see the number of sections and angular modification options. The Tools Palette is modified in the appropriate view.

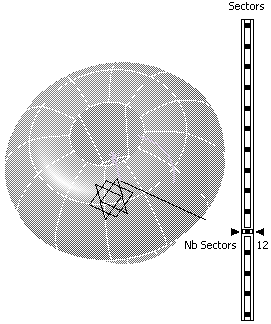

    A slider is displayed at the right of the screen to let you define the sections between 4 and 32.

  2. You can either:

    • drag the slider to the desired value to change the number of sections:
    • hold down the left-mouse button and drag to modify the angle of the revolve. Two angles can be set: clockwise and counterclockwise. Double-click to reset the value to 0.
    • click Rotation Edition to open the Revolve Data dialog box and enter the number of sections, start and end sector angle values or use spinners to change the value. The field dynamically updates whenever you move the slider and vice-versa.

    Click OK when done.

    You can also access this command by pressing CTRL+SHIFT+E.


Filling the Surface


  1. Click Fill Side to close open ends of the surface. The fill side icon has four states:

    • default state. The top and bottom sides of the surface are open.
    • : the top side of the surface is closed.
    • : the top and bottom sides of surface are closed. For instance:
    • : the bottom side of the surface is closed.

    The fill behavior can be set or unset by clicking directly on either side of the revolution axis.
    Click on side of revolve axis Fill behavior set on top side
    Click on side of revolve axis Fill behavior set on bottom side

    You can also access this command by pressing CTRL+SHIFT+U.

  2. To go back to drawing view (plan), click Drawing view .



Apply Command


  1. Click Apply to validate and create the surface of revolution.
    The Manipulation command along with Tools Palette is automatically activated, allowing you to manipulate the surface. The final surface without any manipulation is as seen:

The general representation of vertex, edge and mesh depends on the settings defined in Tools > Options > Shape > Imagine & Shape > Display tab, Base Mesh area. For more information refer to Display.
  • You cannot use a pre-existing curve for surface creation.
  • The Redo command is not available.
