More about View Creation Dialog Box

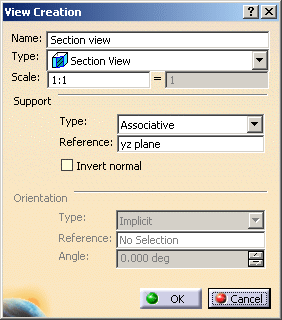

This section describes the View Creation dialog box, which appears when you select New View From to create a view from a 3D plane, face or sketch.
This dialog box contains controls for:



General

  • Name
    Specifies the view name.
  • Type
    Specifies the view type.

    The options in the Type combo box are as follows:
    • Projection View (Auxiliary): Creates a projection/auxiliary view.
    • Section View: Creates a section view.
    • Section Cut: Creates a section cut.
  • Scale: Specifies the view scale.


Support

Changes the support type or reference support of the view.

  • Type
    The options in the Type combo box are as follows:
    • Associative: Associates the view with another reference support. In this case, you will not be able to change the view orientation.
    • Isolated: Isolates the view from its reference support.
  • Reference
    Changes the reference support of the view.
  • Invert Normal
    Inverts the normal of the view. You can also invert it by clicking the view normal in 3D.


Orientation

  • Type
    Specifies the orientation type of the view plane definition.
    • If you select an incorrect orientation type, an error message is displayed and the orientation type is set back to Implicit mode.
    • The reference linear elements and surfaces can be selected from any part of the edited 2D Layout or from 3D view background (except for the background of the new view during its creation).

    The options in the Type combo box are as follows:

    • Implicit: Optimizes the orientation automatically. This is the default mode.
    • X Axis: Orientates the horizontal axis according to the X axis representation when possible.
    • Y Axis: Orientates the horizontal axis according to the Y axis representation when possible.
    • Z Axis: Orientates the horizontal axis according to the Z axis representation when possible.
    • Parallel to line: Orientates the view parallel to a linear element. The linear element is projected onto the view support. If the projection results in a line, the H axis of the view becomes parallel to the projection. Otherwise, the view orientation remains unchanged (i.e. the projection results in a point).
    • Normal to surface: Orientates the view normal to a surface. The normal of the surface is projected onto the view support. If the projection results in a line, the V axis of the view becomes parallel to the projection. Otherwise, the view orientation remains unchanged (i.e. the projection results in a point).
  • Reference
    Specifies the reference element selected for the Parallel to line and Normal to surface orientation types.
    • If you selected the Parallel to line orientation type, some elements which are seen as a line in a view background (circle, ellipse, spline, etc.) cannot be selected as they are not linear elements.
    • There is no associativity between the view and the reference linear element or surface.
  • Angle
    Specifies the angular value for view orientation. The view is rotated by the specified angle, counter-clockwise around the view support, normal from the support basic orientation.
    • The angle of the view in the sheet is independent from the 3D angle.
    • The specified value is not persistent.
