This task shows you how to rename tools
already used in your document. You can do this:
- automatically by means of new references listed in a tool
replacement catalog
- manually by entering new names in a dialog box.
|
 |
1. |
Click
Replace Tools
.
The Replace Tools dialog box is displayed. |
|
|
 |
|
2. |
In the Tool Table list, choose
either Manual Mode or a Tool Replacement Catalog. |
 |
|
You must have previously prepared this
catalog with the desired names. A sample catalog is delivered in
.../Startup/Manufacturing/Tools/ToolsReplacement.catalog . |
|
3. |

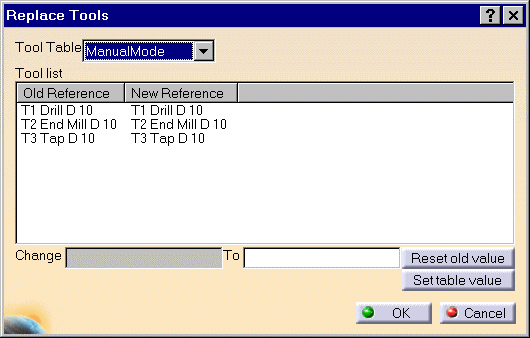

If you selected Manual Mode:
- select a tool to be renamed in the list then enter the new name in
the To area
- if needed, change other tool references in the same way
- click OK to update all the tools in the document with the new
references.
|
|
4. |

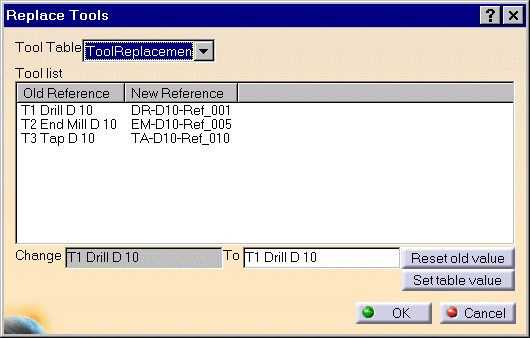

If you selected Tool Replacement
Catalog:

|
|
|
- when you select the desired catalog, all the new tool references
are listed opposite the old references
- click OK to update all the tools in the document with the new
references.
|
|
|

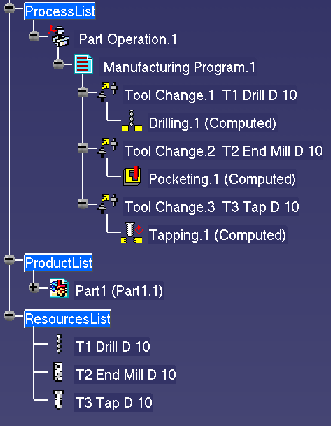

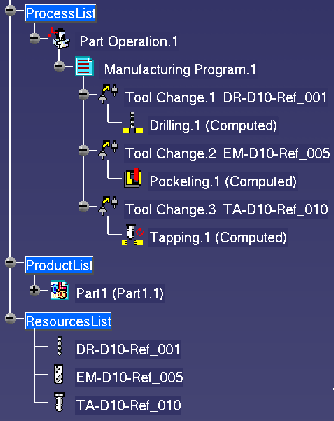

An example of the PPR tree before and after
the update is shown below: |
|
|
 |

|
 |
|
Note that tool path storage
information is not modified by this update. |
 |
