Automation Interface to Access Manufacturing Assembly

Using Interface Description Language (IDL), .CATProcesses are available for Automation interfaces to access Manufacturing Assembly.  The automation interfaces to the Manufacturing Assembly are the following:

  • Manufacturing Assembly:
    • The Name of the Manufacturing Assembly: MAName (get and put)
    • The Part Number of the MA: MAPartNumber (get and put)
    • Manufacturing Assembly or Manufacturing Kit: MAType (only get)
    • The number of assigned items: Count
    • Item (only get); One assigned Part (Product and/or Resource or another Manufacturing Assembly) of the Manufacturing Assembly (to be fetched via index):
    • AddPart: Adds a part (Product, Resource or another Manufacturing Assembly) to a Manufacturing Assembly (Resources can be added only to Manufacturing Kits):
    • Remove Part: Removes an allocated Part from the Manufacturing Assembly
  • Manufacturing Assembly type
    • An Enumeration defining a Manufacturing Assembly or a Manufacturing Kit
  Subsequent some excerpts of Visual Basic how to access the Manufacturing Assemblies:

  • Fetch an assigned Manufacturing Assembly from an Activity

Dim myActivity As Activity
myActivity = <get Activity>
Dim myItem As Item
Set myItem = myActivity.Items.Item(1)
Dim obj As MfgAssembly
Set obj = mySel.FindObject("DNBIAMfgAssembly")

  • Fetch the Name of the Manufacturing Assembly

Dim myName As String
myName = obj.MAName

  • Change the Name of the Manufacturing Assembly

Dim newName As String
newName = "NewMAName"
obj.MAName = newName

  • Fetch the PartNumber of the Manufacturing Assembly

Dim myPart As String
myPart = obj.MAPartNumber

  • Change the PartNumber of the MA

Dim newPartNumber As String
newPartNumber = "NewPartNumber"
obj.MAPartNumber = newPartNumber

  • Fetch the type of the Manufacturing Assembly

Dim MAtype As String
If MA.MAType = manufacturingAssembly Then
MAtype = "Manufacturing Assembly"
Else
MAtype = "Manufacturing Kit"
End If

  • Fetch the number of assigned parts of the Manufacturing Assembly

Dim Number As Long
Number = MA.Count
Fetch the assigned parts of the MA
Dim j As Long
For j = 1 To MA.Count
Dim it As Item
Set it = MA.Item(j)
Dim ItemName As String
ItemName = it.Name
Next

  • Add a new Part to a Manufacturing Assembly

Dim myProducts As PPRProducts
Set myProducts = DELMIA.ActiveDocument.PPRDocument.Products
Dim Part As Item
Set Part = myProducts.Item(2)
MA.AddPart(Part)

  • Remove a new Part from a Manufacturing Assembly

Dim myProducts As PPRProducts
Set myProducts = DELMIA.ActiveDocument.PPRDocument.Products
Dim Part As Item
Set Part = myProducts.Item(2)
MA.RemovePart(Part)


Script Example


Example 1:
  This script is an example how to use all Manufacturing Assembly Automation Interfaces


Prerequisite

Create following PPR items

  • One Activity
  • Two Products
  • Two Resources
  • One Manufacturing Assembly, assign one of the products, assign the Manufacturing Assembly to the Activity with "Process Processes Product"
  • One Manufacturing Kit, assign one of the products and one of the Resources, assign the Manufacturing Kit to the Activity with "Process Processes Product"



Create a CATScript:
  1.

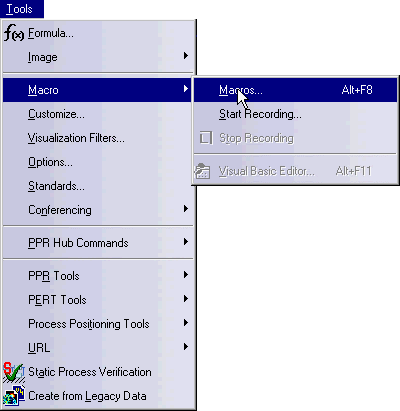

Select the Tools > Macro > Macros and create a new CATScript

  2. Execute following script (Tools > Macro > Macros..>select the new created CATScript> Run)


Option Explicit
Language = "VBSCRIPT"

Sub CATMain()
 MsgBox "Select an activity"
 Dim sFilter(0)
 sFilter(0) = "Activity"
 Dim This_Sel As Selection
 Set This_Sel = DELMIA.ActiveDocument.Selection
 Dim sStatus As String
 sStatus = This_Sel.SelectElement2(sFilter, "Select an activity", True)
 Dim Act As Activity
 Set Act = This_Sel.Item(1).Value

 display_items Act
 change_items Act
 display_items Act

End Sub

Sub display_items(myActivity As Activity)
 Dim i As Long
 Dim mymessg As String
 mymessg = mymessg & "List of Manufacturing Assemblies" & vbCrLf & vbCrLf
 For i = 1 To myActivity.Items.Count
   Dim myItem As Item
   Set myItem = myActivity.Items.Item(i)

   Dim mySel As Selection
   Set mySel = DELMIA.ActiveDocument.Selection
   mySel.Add myItem
   On Error Resume Next
   ' Filter out Products
   Dim prod As Product
   Set prod = mySel.FindObject("CATIAProduct")
   If Err.Number <> 0 Then
     On Error GoTo 0
     Dim MA As MfgAssembly
     Set MA = mySel.FindObject("DNBIAMfgAssembly")

     Dim MAName As String
     MAName = MA.MAName

     Dim MAPartNbr As String
     MAPartNbr = MA.MAPartNumber

     Dim MAtype As String
     If MA.MAtype = manufacturingAssembly Then
       MAtype = "Manufacturing Assembly"
     Else
       MAtype = "Manufacturing Kit"
     End If
     Dim Number As Long
     Number = MA.Count
     mymessg = mymessg & MAName & vbCrLf
     mymessg = mymessg & "  Part Number: " & MAPartNbr & vbCrLf
     mymessg = mymessg & "  Type: " & MAtype & vbCrLf
     mymessg = mymessg & "  Number of Parts: " & Number & vbCrLf
     Dim j As Long
     For j = 1 To Number
       Dim it As Item
       Set it = MA.Item(j)
       mymessg = mymessg & "    Item: " & it.Name & vbCrLf
     Next
     mymessg = mymessg & vbCrLf
   End If
 Next
 MsgBox (mymessg)
End Sub

Sub change_items(myActivity As Activity)
 Dim i As Long
 For i = 1 To myActivity.Items.Count
   Dim myItem As Item
   Set myItem = myActivity.Items.Item(i)

   Dim mySel As Selection
   Set mySel = DELMIA.ActiveDocument.Selection
   mySel.Add myItem
   On Error Resume Next
   ' Filter out Products
   Dim prod As Product
   Set prod = mySel.FindObject("CATIAProduct")
   If Err.Number <> 0 Then
     On Error GoTo 0
     Dim MA As MfgAssembly
     Set MA = mySel.FindObject("DNBIAMfgAssembly")

     Dim myProducts As PPRProducts
     Dim myRes As PPRResources
     Dim Part As Item
     If MA.MAtype = manufacturingAssembly Then
       MA.MAName = "NewMA2"
       MA.MAPartNumber = "NewMA2Part"
       Set myProducts = DELMIA.ActiveDocument.PPRDocument.Products

       Set Part = myProducts.Item(1)
       MA.RemovePart (Part)
       Set Part = myProducts.Item(2)
       MA.AddPart (Part)
     Else
       MA.MAName = "NewMK2"
       MA.MAPartNumber = "NewMK2Part"
       Set myProducts = DELMIA.ActiveDocument.PPRDocument.Products

       Set Part = myProducts.Item(2)
       MA.RemovePart (Part)
       Set Part = myProducts.Item(1)
       MA.AddPart (Part)

       Set myRes = DELMIA.ActiveDocument.PPRDocument.Resources

       Set Part = myRes.Item(2)
       MA.RemovePart (Part)
       Set Part = myRes.Item(1)
       MA.AddPart (Part)
     End If
   End If
 Next
End Sub

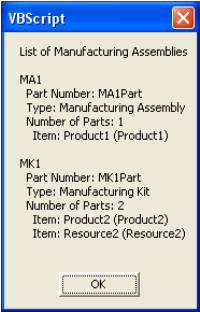

  First a list of the items will be shown before the changes.

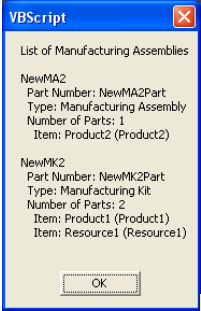

Then the changes are applied and a list box is shown.


Example 2:
  All assigned Products of an Activity are fetched, independently if they are direct assigned, or as assigned parts of a Manufacturing Assembly


Prerequisite
  Create following PPR items
  • One Activity
  • Four Products, assign the fourth Product direct to the Activity
  • Three Manufacturing Assemblies, assign the two of the products to the first MA, assign the third product to the third MA, assign the second MA to the first MA, assign the third MA to the second MA, assign the first MA to the Activity with "Process Processes Product"
  Execute following script (Tools > Macro > Macros..>select the new created CATScript> Run)
  Option Explicit
Language = "VBSCRIPT"

Sub CATMain()
 MsgBox "Select an activity"
 Dim sFilter(0)
 sFilter(0) = "Activity"
 Dim This_Sel As Selection
 Set This_Sel = DELMIA.ActiveDocument.Selection
 Dim sStatus As String
 sStatus = This_Sel.SelectElement2(sFilter, "Select an activity", True)
 Dim Act As Activity
 Set Act = This_Sel.Item(1).Value
 display_Act Act
End Sub

Sub display_Act(myActivity As Activity)
 Dim i As Long
 Dim mymessg As String
 mymessg = mymessg & "List of Products of an Activity" & vbCrLf
 For i = 1 To myActivity.Items.Count
   Dim myItem As Item
   Set myItem = myActivity.Items.Item(i)
   display_Item myItem, mymessg
 Next
 MsgBox (mymessg)
End Sub

Sub display_Item(myItem As Item, mymessg As String)
 Dim mySel As Selection
 Set mySel = DELMIA.ActiveDocument.Selection
 mySel.Add myItem
 On Error Resume Next
 ' Filter out Products
 Dim prod As Product
 Set prod = mySel.FindObject("CATIAProduct")
 If Err.Number = 0 Then
   mymessg = mymessg & prod.Name & vbCrLf
 Else
   On Error GoTo 0
   Dim MA As MfgAssembly
   Set MA = mySel.FindObject("DNBIAMfgAssembly")
   Dim Number As Long
   Number = MA.Count
   Dim j As Long
   For j = 1 To Number
     Dim it As Item
     Set it = MA.Item(j)
     display_Item it, mymessg
   Next
 End If
End Sub


Notes
  • Manufacturing Assemblies cannot be created or deleted; also it is not possible to get a list of all Manufacturing Assemblies in the document.
