Create two points using the following coordinates:
Point.1: X=0, Y=0, and Z=22 |
Point.2: X=0, Y=0, and Z=75 |
 |
 |
-
Define line between these two points.
It is created along the Z axis of the axis-system, using the
Point-Point option. |
-
From the Knowledge toolbar, click Law
.
The Law Editor dialog box is displayed in which you name the law
to be created, give it a description and a storage location. |
 |
-
Click OK.
The Law Editor dialog box is updated. The right-hand part allows
you to create the parameters to be used in the law. The left-hand
part is the law edition box. |
-
Create one real type parameter t and one length type
parameter x, then enter the law below into the edition window:
x=40mm+100mm*(t-0.5)**2
-
Click OK to create the law.
-
Create a second law using one real type parameter t and
one length type parameter y, then entering the following law into the
edition window:
y=40mm+200mm*(t-0.5)*(0.25-t)*(0.75-t)
-
Create a
parallel curve,
using the Line.1 created in step 2 as the reference Curve to
be offset, and the ZX plane of the axis system as the Support
on which the reference curve lies.
-
Click Law... and select Law.1 from the
specification tree.
-
Click OK.
 |
A curve parallel to the selected one is created, taking the law
into account, i.e. it is defined by the equation entered as a law
using the Knowledge Advisor. |
 |
-

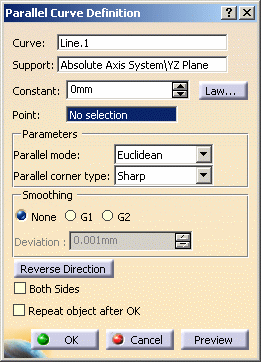

Create a second parallel curve, using Line.1 as the
reference Curve and the YZ plane as the Support.
-
Click Law... and select Law.2.
-
Click OK to create the parallel curve with a
variable law.
-
Use the
Combine command to
create a curve resulting from the intersection of the extrusion of the
two parallel curves.
-
Use the
Project
command to project the combined curve onto the xy plane:
Choose the combined curve as the element to be projected, the xy
plane as the Support, and the Z axis as the Direction. |
 |
Here is the parameterized curve (in blue) obtained by two
formulas: |
 |
|
