Reworking

This task shows you how to rework the areas of the part that have not been machined and were there is residual material.
You must have created a rework area. A rework area is an area that cannot be machined with a given tool.
The rework area must be the current entity.
If you have doubts about whether the rework area you just defined is still the current entity or not
(i.e. if you performed another action since), click the Manufacturing View icon and select the rework area from the list.

  1. Click ZLevel and click OK to close the dialog box that opens.

  2. In the Manufacturing view window (), double-click the tool that is associated with the third ZLevel operation.

  3. Double-click the tool diameter.

    Enter a value of 5.

  4. Click OK to confirm the tool diameter and then OK to close the tool definition dialog box.

  5. Still in the Manufacturing view window, double-click ZLevel.3 to display the ZLevel dialog box.

  6. Go to the Strategy tab .

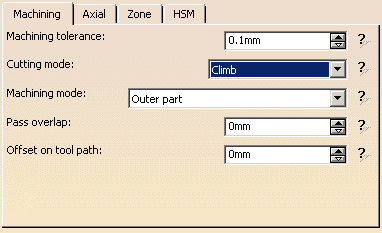

    In the Machining tab, select Outer part for the Machining mode.

  7. Click Tool Path Replay. The new tool path is displayed.

  8. Click OK to close the operation dialog box and Close to close the Manufacturing view.
Now we are going to generate an NC data file.
