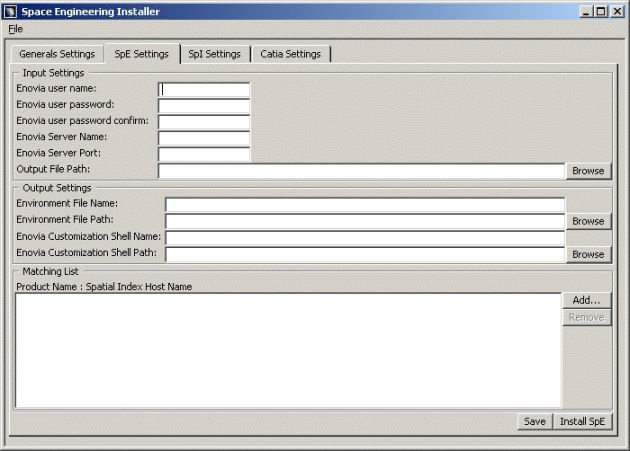

Input Settings
In the Input Settings
area, customize the various paths and files as follows:
-
In the Enovia User Name field, enter the
administrator user ID.
In our example: pwd
-
In the Enovia User Password field, enter
the Enovia administrator password (pwdpwd).
-
In the Enovia User Password Confirm field,
type the Enovia administrator password and confirm this password (pwdpwd).
-
In the Enovia Server Name field, specify
the Enovia server name (i.e. Athena).
-
In the Enovia Server Port field, specify
the Enovia server port (i.e. 1234) of
the Enovia server (Athena)
-
In the Output File Path, specify the path to
the directory, in which SpE will create, at run time, log and results
files and a sub-directory (rep) containing
xml result files. (E:\Install_Space_Engineering\Output)
For this, click Browse and select the path
accordingly in the Path Browser- Choose SpE Output Directory
dialog box displayed.
-
When done, click Ok
Output Settings
In the Output Settings
area, customize the various paths and files as follows:
-
In the Environment File Name field, enter a
name of your choice. This environment file will be created during SpE
server installation (i.e. Generated_SpE_Env).
-
In the Environment File Path field, specify
the path to the directory in which the environment file will be created.
In our example: E:\Install_Space_Engineering\Generated_Env.
For this, click Browse and select the path
accordingly in the Path Browser-Choose SpE Environment Directory
dialog box displayed.
-
When done, click Ok.
 |
Notes:
-
The Generated_SpE_Env
file will be created in E:\Install_Space_Engineering\Generated_Env
-
When the installation is finished, the environment
file cannot be moved without modifying the parameters of the
associated executable program.
|
-
In the Enovia
Customization shell Name field, specify a name of your choice for
the Unix shell. This shell enables to customize the Enovia server
configuration. (i.e. Generated_Shell)
-
In the Enovia Customization shell Path
field, select the path to the directory in which the Unix shell
will be created (using Browse-> Path Browser-Choose Enovia Shell
Directory) or type it.
Matching List

In the Matching List area, configure the installation architecture as
follows:
-
Specify the 'mapping list' or 'mapping table' identifying
the SpI(s) location on the network.
In our example, the SpE server (Chronos)
must know that SpI Car_1 is located on
Zeus and SpI Car_2
is located on Knossos.
For this, click Add
-
Enter Car_1
in the Product Name field.
-
Enter Chronos in the Host Name
field.
-
Repeat the operation with
Car_2 (Knossos).
|

|
 |
Note: You can remove items from your
matching list using the Remove button
All you need to is select the line to be removed, the Remove
button is no longer grayed out. |
-
Click Ok when done.
-

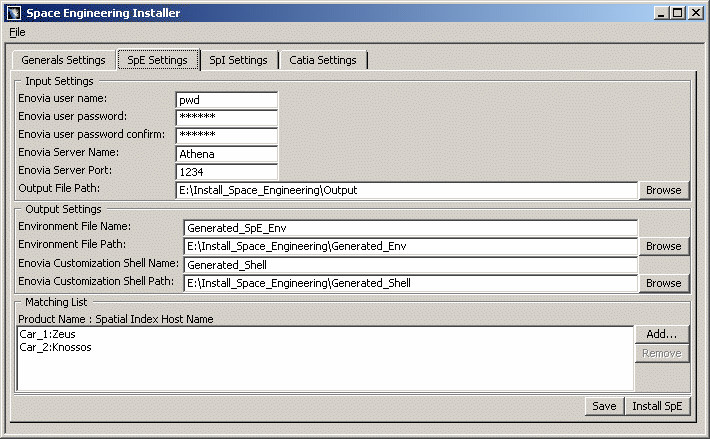

Check your result, you should obtain something like this

Now let's have a look at our architecture example |
-
Click Save
when satisfied.
-
Click Install SpE.
|
