Creating a Branch

	This task shows you how to create a branch to a piping line.
	1.	With the tubing line you want to branch from displayed, click on the Route Tubing Line button.  The Route Line dialog box displays.

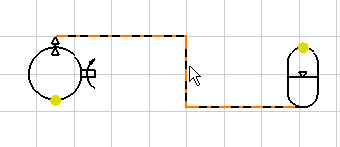

	2.	Move the pointer to the location you want to branch from, make sure it is selected and begin routing. In the image below the line has been selected.

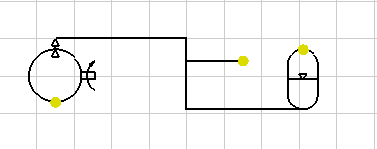

	3.	Double click to end routing in free space. The branch will be displayed with a connector at the end but no connector where it joins the main line.
	When you create a branch it becomes part of the main line.
