This task explains how to place an
annotation break symbol on a route. |
 |
To
place an annotation symbol on a route in your 2-D document: |
|
|
1. |
Click the Place Annotation
Symbol button
 .
The Catalog Browser displays. |
|
|
2. |
Select Annotation Symbols on the Catalog Browser, and select a specific annotation
symbol.

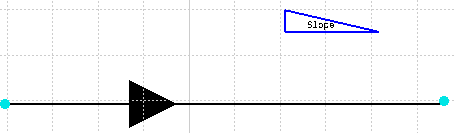

Place the annotation symbol on the route.
You can place multiple annotation symbols on the route.
|
|
3. |
You can move an annotation break
symbol along a route using its slide manipulator ( ).
Select the symbol and the slide manipulator displays.
Drag the slide manipulator along the route to move the annotation
break symbol.
 |
|
|
|
