This task shows you how to display the Job Manager.

1. Click the Job Manager icon .

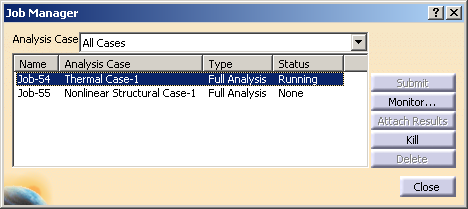

   The Job Manager dialog box appears with a list of the jobs that you have created for the current analysis case.

2. Select the analysis case or cases for which you want to see the jobs.

3. For detailed instructions on using the Job Manager to create, edit, submit, and manage jobs, see the following sections :

   • Creating a New Job

   • Navigating the Job Customization Options

   • Submitting Jobs

   • Monitoring the Progress of a Job

   • Viewing the Results of Your Job

   • Terminating a Job

This task shows you how to submit an analysis case to the solver.

1. Click the Job Manager icon .

   The Job Manager dialog box appears with a list of the jobs that you have created. By default, jobs for all analysis cases are shown.

2. Select one or more jobs from the list in the Job Manager, and click Submit.

   Tip: You can also submit a job by right-clicking on the Job objects set in the specification tree and selecting Submit from the menu that appears.

   The solver submits the selected jobs for processing. Jobs are processed sequentially, with thermal analysis cases processed first so that the results will be available for use in coupled thermal-stress analyses. If you submit a single job and Run model consistency check is toggled on in the job editor, a Job Submission dialog box appears with the results of the consistency checks described in Checking Your Model. In addition to the consistency check messages, messages from the input file writer are listed on the Write Input File Messages tabbed page. Consistency checks and messages are disabled when you submit multiple jobs simultaneously.

3. Investigate and, if necessary, correct any error or warning messages in the Job Submission dialog box. Click Continue to continue the analysis, or click Abort to terminate the analysis so that you can make changes to your model.

   If you submitted multiple jobs at the same time, the Job Submission dialog box is not available. If an analysis terminates or if there is a problem with the results, select a single job and click Monitor to review warning or error messages created as the analysis was running. You can also submit the jobs again individually with the consistency checks turned on to review any errors and warnings generated prior to the analysis.

4. When you click Continue in the Job Submission dialog box or, if the model consistency checks are suppressed, when you click Submit in the Job Manager, Nonlinear Structural Analysis or Thermal Analysis submits the job or jobs for analysis using the settings defined in the job editor.

   The information in the Status column of the Job Manager updates to indicate the job's status.

   Note:  For information on monitoring a job that you have submitted, see Monitoring the Progress of a Job.

5. When the job completes successfully (i.e., the Status column displays Completed), you are ready to review the results of the analysis. See Viewing the Results of Your Job for more information.

This task shows you how to monitor the progress of a job.

1. Click the Job Manager icon .

   The Job Manager dialog box appears with a list of the jobs that you have created.

2. Select a job from the list in the Job Manager, and click Monitor. (The Monitor button is unavailable if you select more than one job.)

   The job monitor dialog box for that job appears. The top half of the dialog box displays the information available in the status (.sta) file for the job. The bottom half of the dialog box displays log file information, error and warning messages, and output information.

3. To view the information in the bottom half of the job monitor dialog box:

   • Click the Log tab to display the start and end times for the job that appear in the log (.log) file.

   • Click the Errors and Warnings tabs to display the errors or the warnings that appear in the data (.dat) and message (.msg) files.

   • Click the Output tab to display a record of each output data entry as it is written to the output database.

   The information presented in the job monitor dialog box is updated continually as the job progresses.

4. If you close the analysis document or exit Nonlinear Structural Analysis or Thermal Analysis while a job is running, incoming job messages are stored only in the .ipm file. Therefore, when you restart Nonlinear Structural Analysis or Thermal Analysis or reopen the analysis document while the job is still running, you must click Refresh to update the contents of the job monitor.

5. If necessary, you can terminate the job by clicking Kill at the bottom of the job monitor dialog box.

This task shows you how to attach an output database file to an analysis document in Nonlinear Structural Analysis or Thermal Analysis.

1. Click the Job Manager icon .

   The Job Manager dialog box appears with a list of the jobs that you have created.

2. Select a job from the list in the Job Manager, and click Attach Results.

   Depending on the status of the current analysis case, a dialog box may appear asking you whether to attach the output database file containing the results for the selected job to the current analysis case or to a new analysis case (see Importing an ODB for details). When you attach the output database file to an analysis case, a link to the output database file appears in the Links Manager and step objects for each step in the analysis appear in the specification tree under the Analysis Case Solution objects set for the analysis case. In addition, the status of the Analysis Case Solution entry is updated to show that the solution is now available and is consistent with the model and history specification; in other words, the symbol no longer appears.

   Note:  You can attach an output database file to your analysis document using the Import Results Database icon , as explained in Importing an ODB. However, unless you are opening an output database file for an orphan mesh, the Job Manager approach is recommended.

3. You can create and customize different plots of your results. For more information on postprocessing in Nonlinear Structural Analysis and Thermal Analysis, see Postprocessing.
