Roughing

Please note:

• the computation rules for the tool patch defined in Tool Path Replay for the Part, the Check and the Fixtures do not apply to the Rough Stock,
• the Hide/Show status of the sub-elements of a Body or an OpenBody are not taken into account.

To create the geometry you define:

• geometric components ,
• machining strategy ,
• tool data ;only end mill tools are available for this operation,
• speeds and rates ,
• macro data .

Only the geometry is obligatory, all of the other requirements have a default value.

• make the Manufacturing Program current in the specification tree if you want to define an operation
  and the part/area to machine at the same time,
• or select a machining feature  or an offset group from the list if you have already defined the area to machine
  and now you want to define the operation to apply to it.

Below we are going to see how to do the first of these.

1. Open file SurfaceMachining3.CATProduct, then select Machining > Surface Machining in the Start menu.

2. Then display the model in wireframe mode using the View/Render Style/Customize View command:


3. Click Roughing .
   A roughing entity and a default tool area added to the program.
   The dialog box opens at the geometry tab page .
   This page includes a sensitive icon to help you specify the geometry to be machined.
   The red area in the sensitive icon represents the part geometry.
   It is obligatory, as is the rough stock. All of the other parameters are optional.

4. Click the red area in the sensitive icon and select the part in the viewer.
   Then double-click anywhere in the viewer to confirm your selection and redisplay the dialog box.

5. Click the rough stock in the sensitive icon.
   Select the stock in the viewer.

6. Click Replay to compute the operation.
   You will see that the part has been rough machined.
   A progress indicator is displayed.
   You can cancel the tool path computation at any moment before 100% completion.

7. If you want to perform another roughing operation,
   you can use the result of the above operation as the rough stock for the next:

8. Click the Full Video icon () and running the animation,

9. Click the Save Video Result in a CATProduct icon (),

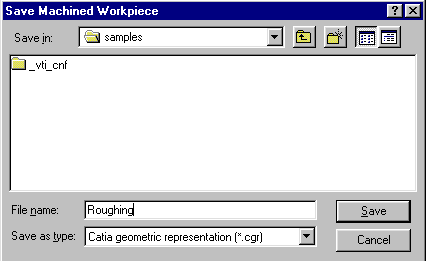

10. Name the file Roughing and press Save.


11. Close all of the dialog boxes.

12. Double-click Product 1 in the tree and, using the contextual menu,
    choose Components > Existing Component ...,

13. Browse to the right directory and choose Roughing.cgr.

14. Double-click Part Operation in the tree.


You can now select Roughing in the tree as your rough stock for the next operation.

Invalid Face

1. If a tool path cannot be computed because of invalid faces,
   an explicit warning message like this one will appear:

   Each invalid face is highlighted in red, with an arrow pointing on it.

   This visualization is removed when you close the main dialog box or
   when you select Remove in the contextual menu.



2. Click OK in the Warning box to revert to the main dialog box.

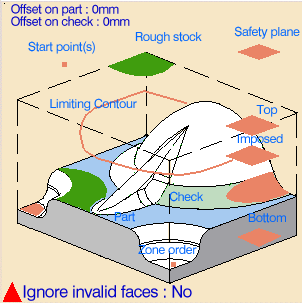

   In the Geometry tab, a message Ignore invalid faces: No is displayed:


3. You can either:

   close the dialog box. When you reopen it, the Ignore invalid faces: No will not be displayed. heal the defective geometry and restart the computation. If it is successful the message Ignore invalid faces: No will disappear. ignore the invalid faces. Click the text Ignore invalid faces: No. It will turn to Ignore invalid faces: Yes and the computation will continue. The message remains displayed as a warning.
